Descripción

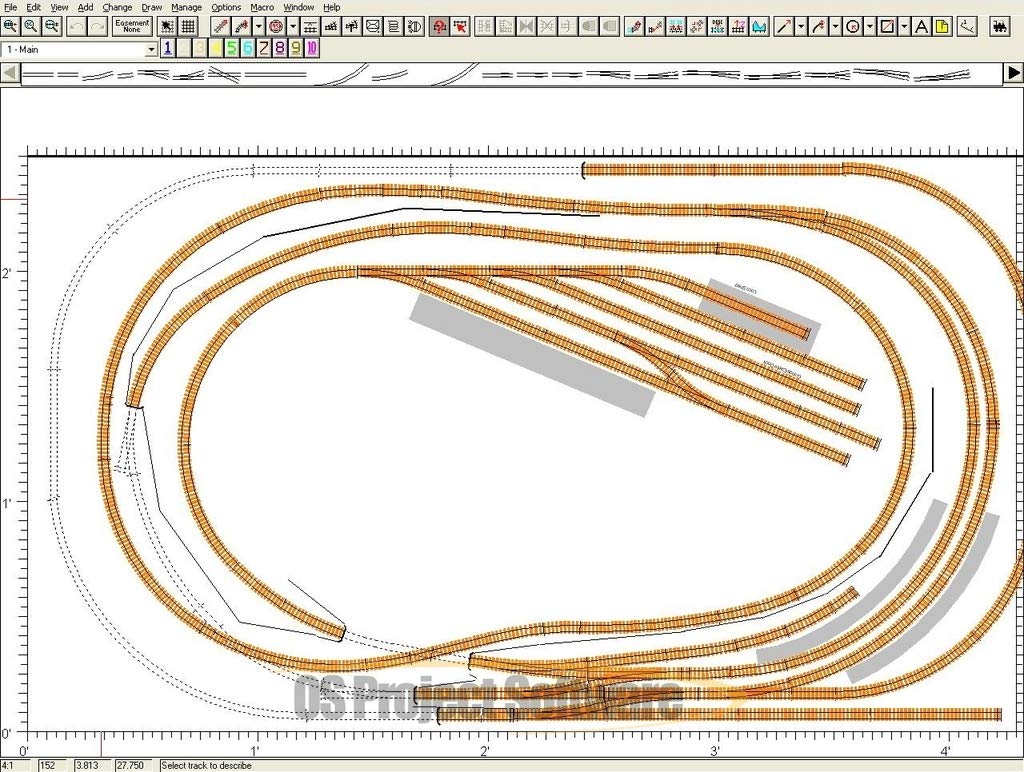

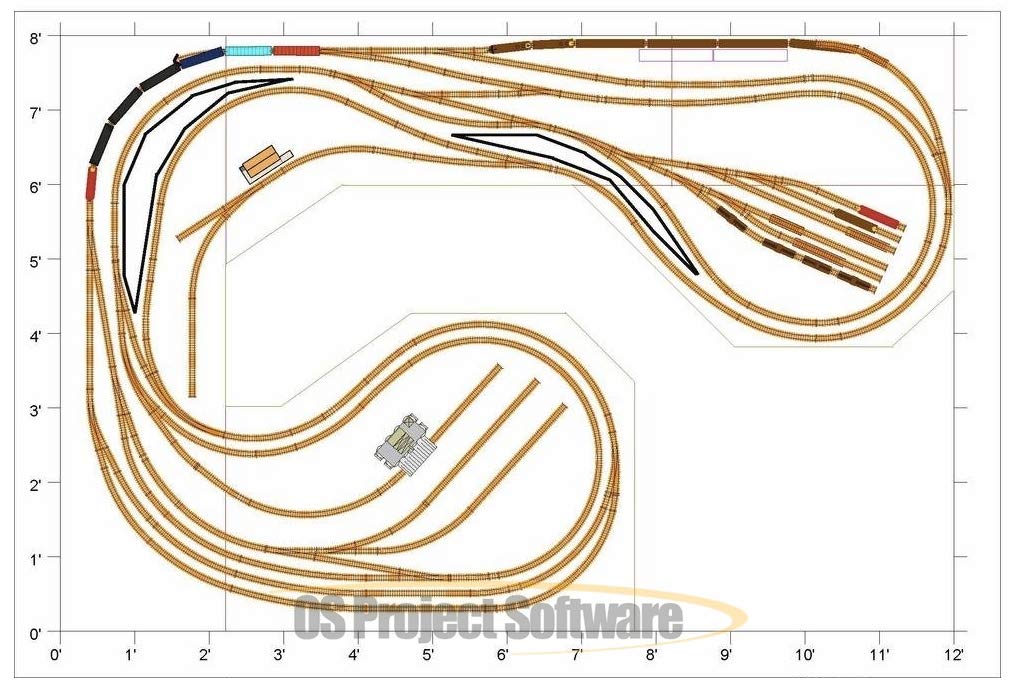

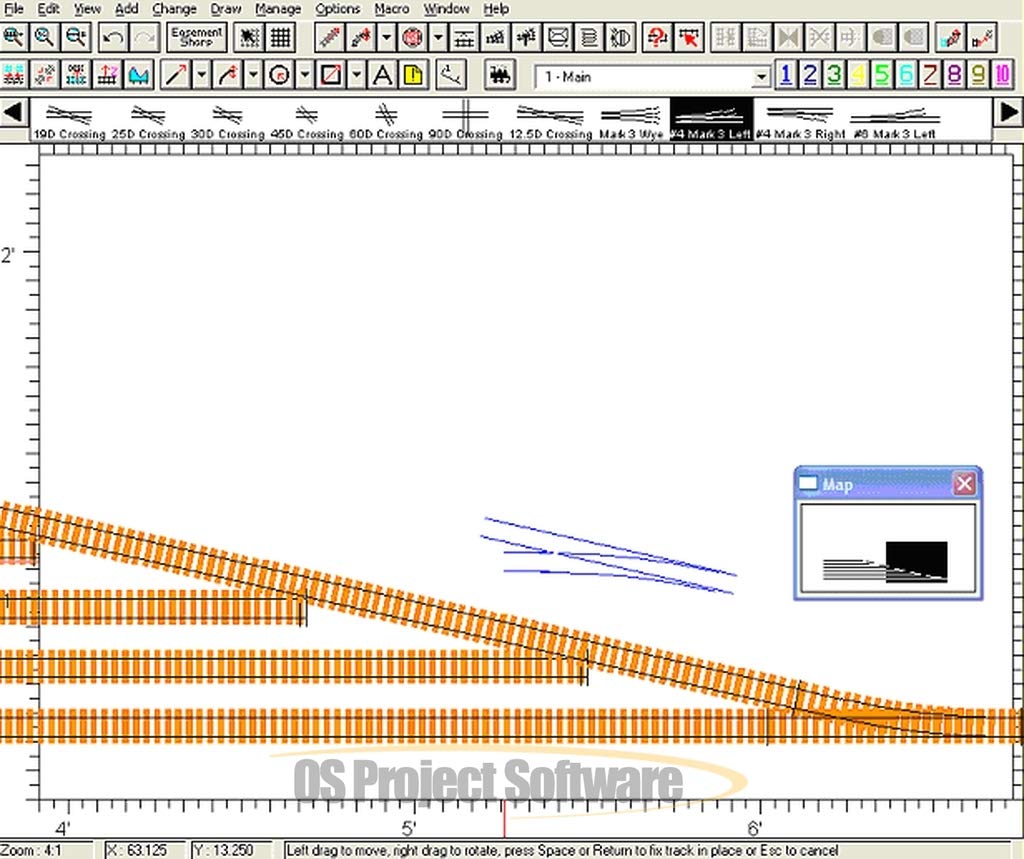

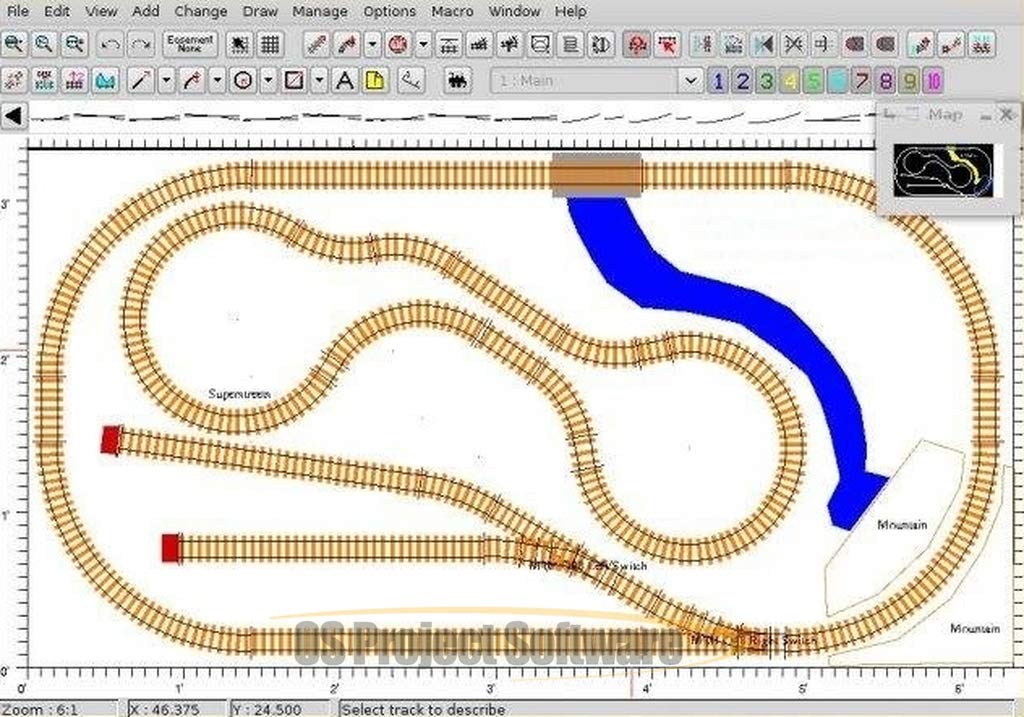

Product description XTrackCAD XTrackCAD is a CAD program for designing model railroad layouts. If you are interested in creating model railroads this is an essential tool for design and planning.Uses - Design layouts in any scale and gauge - Use the predefined libraries for many popular brands of turnouts - Add your own favorite components - Manipulate track much like you would with actual flex-track to modify, extend and join tracks and turnouts - Test your design by running trains, including picking them up and moving them with the mouse - At any point you can print the design in a scale of your choice. When printed in 1:1 scale the printout can be used as a template for laying the track to build your dream layout - Learning XTrackCAD is made easy with the extensive on-line help and demonstrationsOverview of Main Menu - File: Open, save, print layouts and parameter files handling - Edit: Select, deselect, cut and paste, edit visual properties like thickness or tunnel of track - View: Zoom in and out, grid operations, refresh screen - Add: Place new track pieces, including fixed straight, curved, turnouts plus handlaid turnouts - Change: Operations to change existing track, eg. flip, rotate, move, elevation changes - Draw: Add basic objects like lines, benchwork, text - Manage: Custom management for your own structures or rolling stock, add new track pieces with the turnout designer, run - Options: Change settings for the application or the layout - Macro: Record or playback macros - Windows - Select active window, reopen map window if closed - Help - Access the user documentationTrack and Accessories The software includes a large collection of brands for track and accessories including: - Atlas - Bachmann - Fleischmann - Hornby - Kato - Lionel - Märklin - NMRA - Peco - Walthers - and many more Legal Disclaimer *The individual software installer and screenshots are released under the GNU GPL. The license is available on the disc. All other images, items, additional software, disc image, disc menus and designs contain our protected copyrighted intellectual property.
