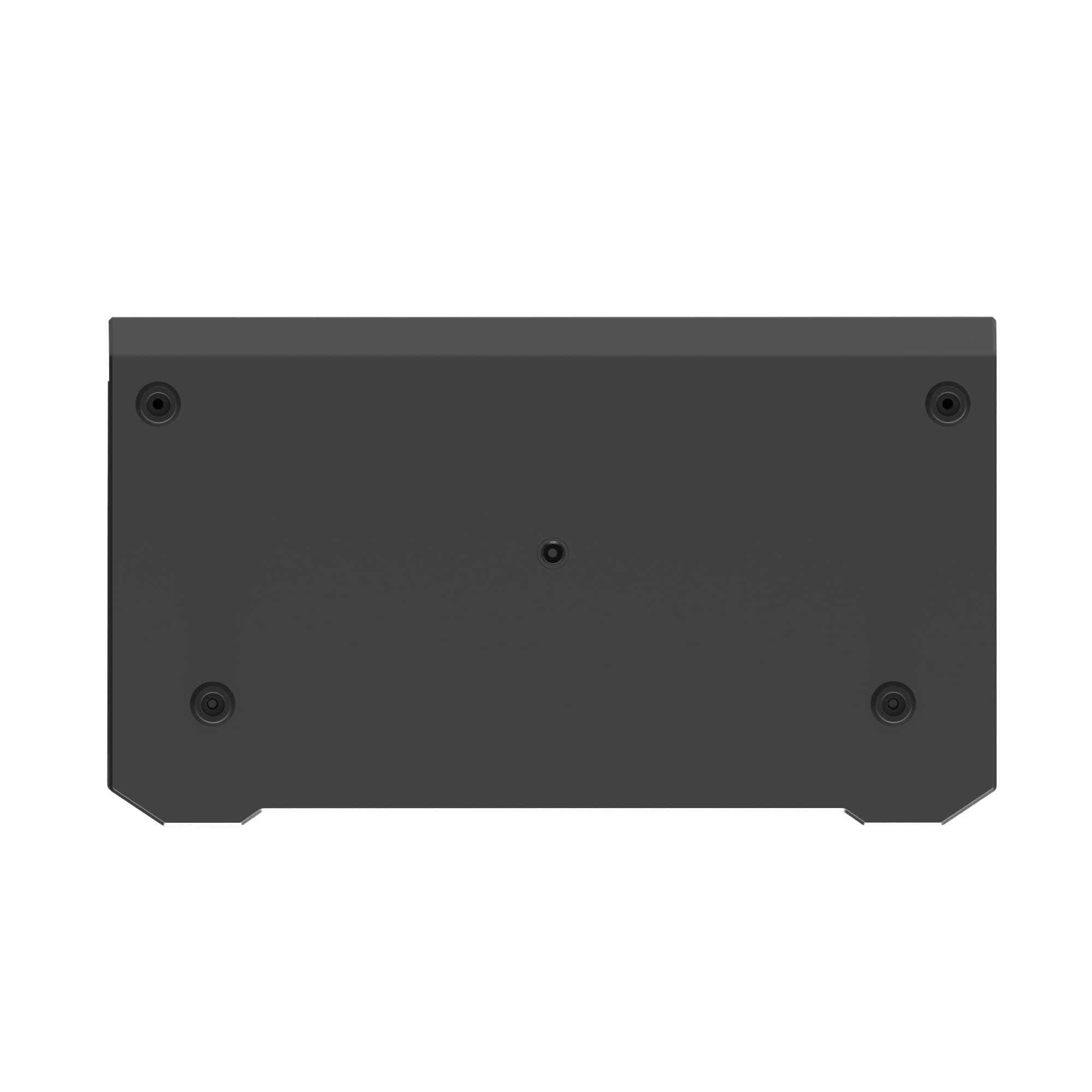

AVMATRIX HVS0402U Micro 4 Channel HDMI Live Streaming Video Switcher, LAN Port for PC Software Remote Control, 1080P Resolution, 12 VDC at 2 A, Black

Key features
- 4 channel auto-detected HDMI inputs
- 1 x HDMI PGM output,1 x HDMI multiview out, 1 x USB type-C output
- AUX output configurable and assignable
- USB-C for capturing and streaming on PC
- Clearly visible multiview & status page
- Upstream key: Luma key, Chroma key, PIP×2/ POP
- Downstream key and LOGO overlay
- T-bar/ Auto/ Cut transitions; various effects: WIPE(9 x 2 patterns) / MIX/ DIP
- Audio mixer: HDMI embedded audio and 2-Ch MIC/ line In; audio delay available
- Media library: 49 default patterns, 16 imported images, 16 captured images, 2 color generators
- LAN port for PC software remote control
- FTB/ MUTE/ STILL/ GPIO for tally
- Customer configuration import and export

Specifications
- Graphics memory: 32 Images
- Audio mixing: 2-Channel mixing
- Processing resolution: 1080p
- Number of video input sources: 4
- Video input connectors: 4 x HDMI female
- Input video format: HDMI 1080p
- Input audio format: Analog
- Video output channels: 2
- Output audio format: Analog
- Monitor output: 1 x HDMI
- Other I/O: 1 x DE-15/DB-15 tally input, 1 x RJ45 LAN input/output, 1 x USB type-a firmware, Service Input
- Compatible services: Facebook Live, Livestream, Skype, Twitch, YouTube Live
- Power connector: 1 x barrel (7 to 24 VDC) Input
- Device: 12 VDC at 1 A (12 W)
- Power Supply: 12 VDC at 2 A
- Operating temperature: -4 to 140°F
- Storage temperature: -22 to 158°F
- Dimensions: 9.63 x 5.64 x 1.75"
- Weight 2.3 lb
- Package weight: 3.23 lb
- Box dimensions (LxWxH): 13” x 7.7” x 3.5"

Item Weight	1.04 Kilograms
Product Dimensions	24.45 x 14.32 x 4.45 cm; 1.04 kg
Item model number	HVS0402U
Color Name	Black
Compatible Devices	Camera, Personal Computer
Connector Type	HDMI
Size	HVS0402U

AVMATRIX HVS0402U 4 x HDMI Inputs Multi Format Video Mixer Switcher USB Output Real Time Live Streaming Multi Camera Production
