S-Union Upgraded 942332-001 400W Power Supply Compatible with HP 280 288 285 480 600 680 800 G3 G4 Power Supply PA-3401-1HA L04618-400 942332-001 L04618-800 PA-3401-2HA PSU Power Supply

This is an exact fit for a TE01-5012, new for 2024, which comes with a pcie 16 slot, but no power connectors for a GPU. This power supply worked perfect. Overall it might have been better to purchase a 500 watt power supply, but the price difference for the 500 Watt was over 3 times as much. So I just went with the 400 Watt. The power budget should be very acceptable on this computer with a low profile video card (like an Nvide 4060).

Worked just fine. I needed this to accomodate my new GPU. The legacy power supply was only rated for 180 watts. I put this new power supply in an HP-590-pxxxx series Pavillion mid tower. It's been running for a few days now with no issues. The screw holes lined up too!

Waiting to hear back from customer service, I have the exact baker motherboard, I build computers so I’m 95% sure everything is connected correctly, each 4 pin is in there designated spot and it runs great, until it needs external power from the 8 pin which I have on the 4060 gpu which only draws 115w max. This is where it starts, not sure if I’m hearing an electrical sound, kinda like buzzing or coil whine, although coil whine is usually much higher pitch so probably not, the second I play a game it starts and the second I leave the game it stops instantly so I know it’s a power draw issue, never dealt with this before so hoping it’s just a bad psu. Just be cautious before you buy, I upgraded a hp te01-1114 hp envy from 180w to this 400w platinum efficient psu and used a 4060. Total draw is under 200w,Ill update this after hearing from customer service.

Let me start with a short rant: HP is infamous for using proprietary cabling on their desktop computers. OK, rant over--I'm not very good at ranting.Anyway, this PSU was a drop in replacement for the totally inadequate (180W!) OEM unit. Now my computer runs even with a heavy workload AND a GPU added. (Although, if you want to add a GPU, you still need to check the power use of the card first, some GPUs can draw 400W all by themselves.)Anyway, this has solved my problem and it runs cooler than the OEM PSU.

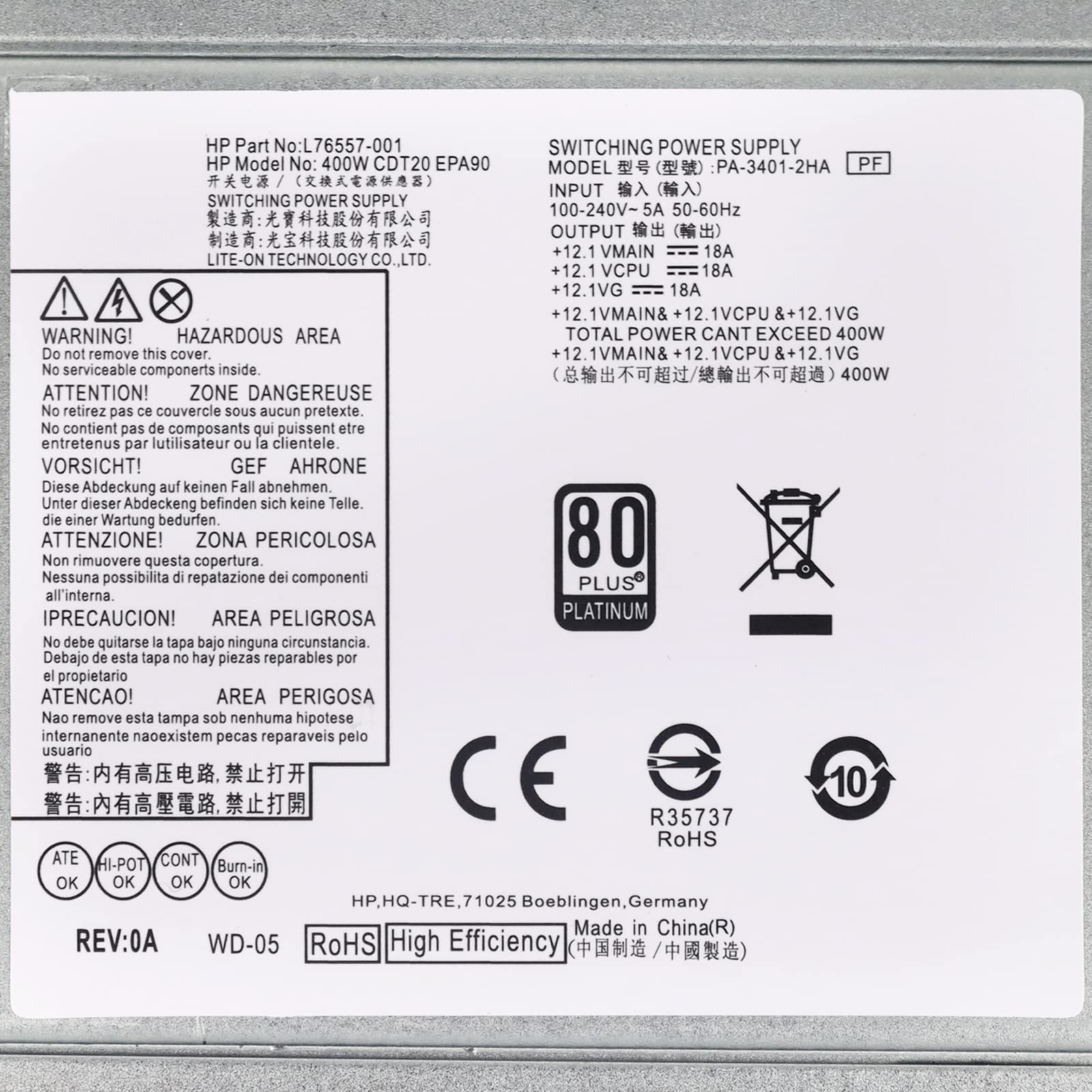

Bought for an old HP PC 690 upgrade drom its original 180W PSU. So far runs without issues.Not tested: full power usage, not GPU or CPU upgrade yet.Edit 2025-05-17: I want to make myself clear, I still think this PSU is a good upgrade path for the very limited HP towers. Being said that, this PSU isn't in any way a 80+ PSU, less a PSU platinum as the label says, fortunately, the vendor never claimed that this model was a 80+ platinum, otherwise I could be disapointed with my purchase.As a suggestion for the vendor, please remove the 80 platinum from the label, because as I said before, this PSU is one of the few alternatives to get a decent upgrade on this size and ventilation costrained systems.With a test rig consisting of only the bare minimum components (NVMe drive, no PCIe cards, only integrated graphics) the original HP power supply measured a minimum of 0.94 PF, even with a minimum load; meanwhile, with the minimum setup, the new PSU only reached 0.54 PF, and with the full setup (around 60W more that the bare bones setup) It only got 0.6 PF.Attached are the pictures that show that the PSU lacks any kind of PFC IC or circuit

Exactly as advertised. Installed this in my HP and was able to power my GPU. And this was way cheaper than the OEM on hp's website. Still expensive for a power supply, but all things considered, still worth it.

Bought used HP TP01 10th gen i5 and used 1660ti, but HP's 180wat PSU hinder the uses of 1660ti. However, thanks to this PSU it works all great now. My niece is playing Fortnite 90fps on less than $300 set up.

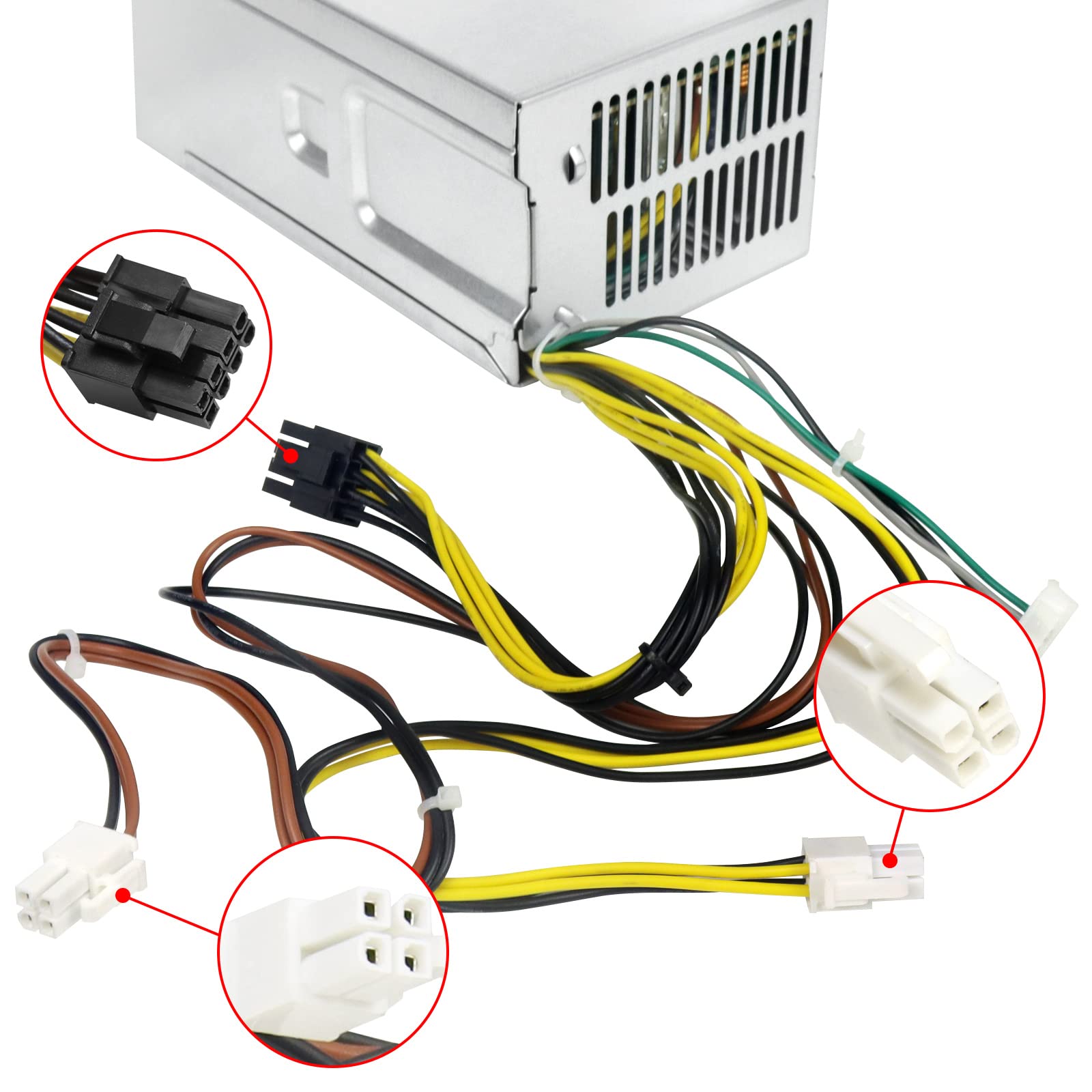

The original desktop came with a 180 watt power supply. I needed to add a graphics card for image editing. This power supply is an exact fit and came with the three correct connectors for the Baker motherboard. In addition it comes with a 8 pin PCIe power connector. This is not specifically mentioned in the product description but is important. After the power supply was installed and working I ordered a Geforce RTX4060 graphics card which uses only 110 watts. The combination is now working perfectly. I am very happy.
