⏱️ Elevate your SDR game with pinpoint timing precision!

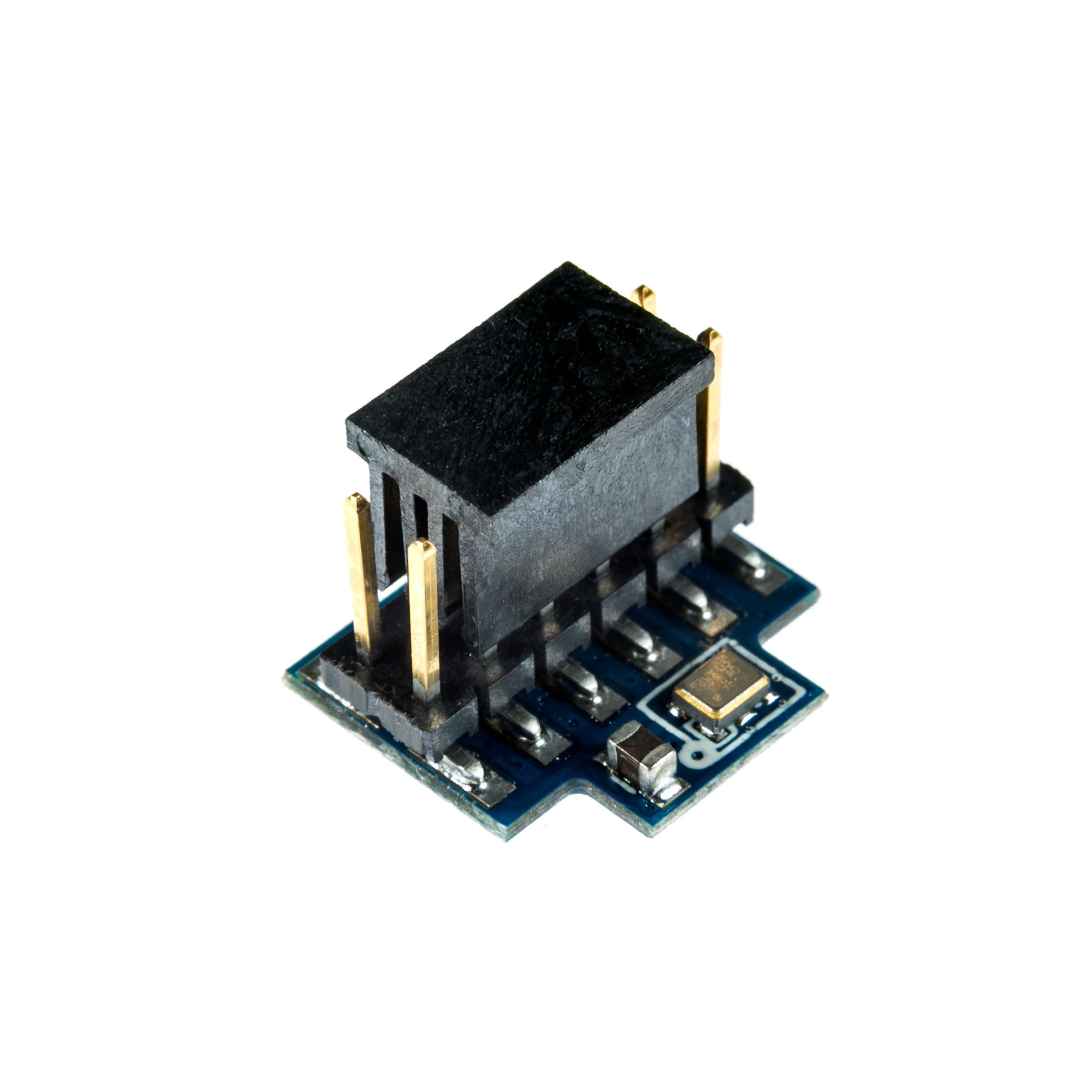

The NooElec Tiny TCXO is a plug-and-play 10MHz temperature-controlled crystal oscillator module designed to upgrade HackRF devices with ultra-high frequency accuracy (0.5 PPM max) and ultra-low phase noise. Its ultra-compact 0.58" x 0.4" size and custom low-profile headers ensure seamless integration with select acrylic and aluminum enclosures, making it ideal for high-precision GPS and SDR experimentation without any soldering required.
| ASIN | B077H7Q7GL |
| Aspect Ratio | 16:9 |
| Available Memory Slots | 1 |
| Box Contents | NooElec aluminum case, Great Scott Gadgets acrylic case |
| Brand Name | NooElec |
| CPU Model Number | i7-11700K |
| Compatible Devices | NooElec aluminum case, Great Scott Gadgets acrylic case |
| Country of Origin | USA |
| Customer Reviews | 4.2 4.2 out of 5 stars (123) |
| Display Type | LCD |
| Graphics Card Interface | Integrated |
| Graphics Description | Integrated |
| Graphics Ram Type | Unknown |
| Hard Disk Description | 1 TB |
| Hard Disk Interface | Solid State |
| Hardware Interface | DisplayPort |
| Human Interface Types | Microphone |
| Item Dimensions | 20 x 10 x 10 millimetres |
| Item Weight | 1 Grams |
| Keyboard Description | Wired, full-size, QWERTY, USB keyboard |
| Keyboard Layout | QWERTY |
| Manufacturer | NooElec Inc. |
| Maximum Display Resolution | 3840x2160 |
| Memory Storage Capacity | 1 TB |
| Model Name | TCXO |
| Model Number | Nooelec Tiny TCXO |
| Native Resolution | 3840 x 2160 |
| Network Connectivity Technology | LAN |
| Operating Systems | Windows |
| Personal Computer Design Type | Mini PC |
| Processor Brand | AMD |
| Processor Count | 1 |
| Processor Series | Unknown |
| Product Features | Low profile |
| RAM Memory Technology | DDR4 |
| RAM Type | DDR DRAM |
| Ram Memory Maximum Size | 1 GB |
| Resolution | 3840 x 2160 |
| Specific Uses For Product | [INF] Inferred: High-precision GPS projects and other applications requiring a stable and accurate frequency source |
| Style Name | Minimalist |
| Total Video Out Ports | 1 |
| UPC | 616469146182 |
| Video Output | DisplayPort |
| Video Output Interface | DisplayPort |
| Wireless Network Technology | Wi-Fi |
| Wireless Technology Type | gps |
A**R
Pinout information
Great product, reasonable price. I bought this to use in a non-HackRF project but couldn't find any pinout info so for anyone interested Looking at the HackRF One schematics and Gerber plots, supply voltage is 3.3V Pin 6 is VCC (+3.3V) pin11 is GND and pin 7 is CLKOUT - 1.8V Output I wanted a PMOD compatible 10MHz TCXO, and this is the closes I could find. Managed to get it working with a Zybo-Z7 FPGA board by using a differential buffer and setting the the input I/O standard to TDMS_33 Looking from the top (pins down) 6 5 4 3 2 1 --VCC--NC----NC--NC--NC--NC --NC---GND--NC--NC--NC--CLKOUT 12 11 10 9 8 7
L**I
Works a treat, simple to install
Plug 'n play TCXO. Just unscrew the case and pop the board into the end of the P22 riser that's next to the clock input SMA connector. If you've installed hackrf tools, you can see if the module has been detected by issuing the following: hackrf_si5351c -n 0 -r [ 0] -> 0x01 The command will return 0x01 if it's using the new TCXO.
A**A
Good but doesn't work with my portapack module
C**S
J'ai utilisé le produit pour corriger et stabiliser la fréquence .
雀**雀
ちゃんと動きました。薄いのでケースと干渉しませんでした。
J**F
This fit fine in my nooelec metal case, Had zero issues just plugging it in and puting it back in the case. My board wasnt even an offical board, and it still worked fine.
B**R
Das Teil war zwar schlecht verpackt, aber nachdem die zwei schiefen Pins geradegebogen waren, ließ sich das Teil in die Buchse "P22" stecken. Eingeschaltet und der HackRF ist nun auf der richtigen Frequenz! Plug and Play! Der TCXO ist niedrig gebaut und ist kompatibel mit dem Gehäuse von Nooelec.
