Waveshare EMW3162 Arduino/Nucleo Wifi Shield with 120MHz MCU STM32F205RG low consumption Optional antenna Onboard Antenna Serial WiFi Module Board

Description

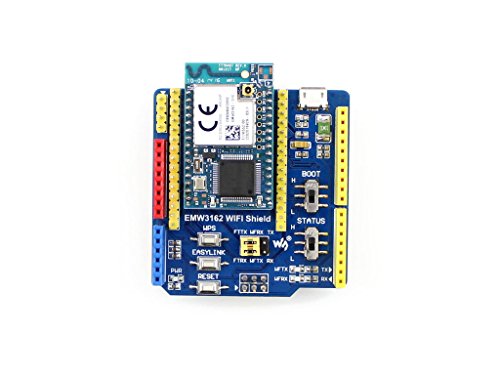

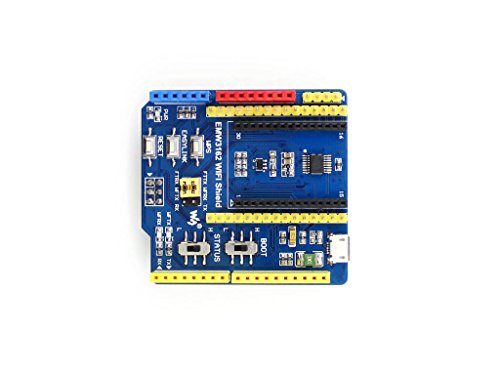

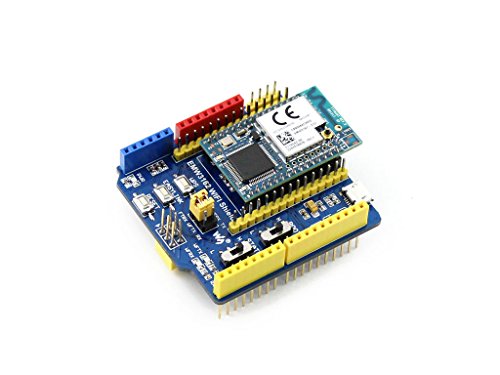

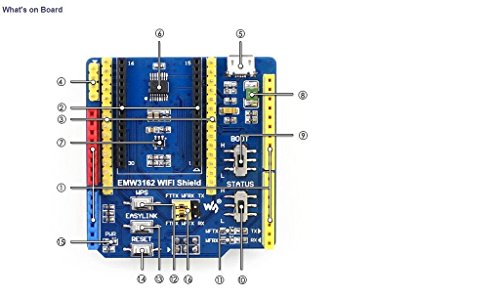

Overview EMW3162 WIFI Shield consists of a base board and a WiFi module EMW3162. It allows you to connect your Arduino/Nucleo board with the Internet. Thanks to the EMW3162 WIFI Shield, WiFi communication will become easy for devices that feature Arduino connectivity. Features The WiFi module EMW3162 : As easy to use as an serial module with the provided serial transparent transmission firmware High stability, hardly goes down Ultra low power consumption, online standby 7mA only Optional antenna, onboard antenna OR external antenna via IPEX The base board : Compatible with Arduino interface, use UART only Works as an Arduino WiFi Shield, connects to Arduino boards like : UNO, Leonardo, Nucleo, Xnucleo, etc. Works as an Arduino WiFi board, allows connecting with Arduino shields Onboard USB to UART converter FT230XS, for UART debugging and/or firmware updating Onboard WiFi TX/RX LEDs, indicating the WiFi communication status Supports EasyLink fast matching (instant networking by pushing the SSID and password of the wireless router via smart phone APP) Supports one-key recovery to factory setting (no need to flash the firmware for configuration errors) Flexible boot mode configuration 500mA fast self-recovery fuse, stable and safe
