Overview

This is a 24-bit high precision barometric pressure sensor, which allows accurate altitude tracing, as well as barometric pressure / temperature measuring. It supports both I2C and SPI interfaces, also is compatible with 3.3V/5V voltage levels.
Due to its ultra small form factor, low power consumption, low noise and high precision, the BMP388 Barometric Pressure Sensor is suited for applications such as drones, accurate altimeter, environment monitoring, and IoT projects, and so on.

Features

Supports I2C (default) / SPI interface
Onboard voltage level translator, compatible with 3.3V/5V operating voltage
Comes with development resources and manual (examples for Raspberry Pi/ /STM32)

Specifications

Operating voltage: 3.3V/5V
Communication interface: I2C/SPI
Barometric pressure operation range: 300~1250hPa
Barometric pressure absolute accuracy: ±0.40hPa (@900~1100hPa, 25~40℃)
Barometric pressure relative accuracy: ±0.08hPa (@900~1100hPa, 25~40℃)
Temperature coefficient offset: ±0.75Pa/K (@700~1100hPa, -20~65℃)）
Temperature absolute accuracy: ±0.5℃ (0~65℃）
Possible resolution: 0.016Pa (high precision mode)
Possible sampling rate: 200Hz
Operating voltage: -40~85℃

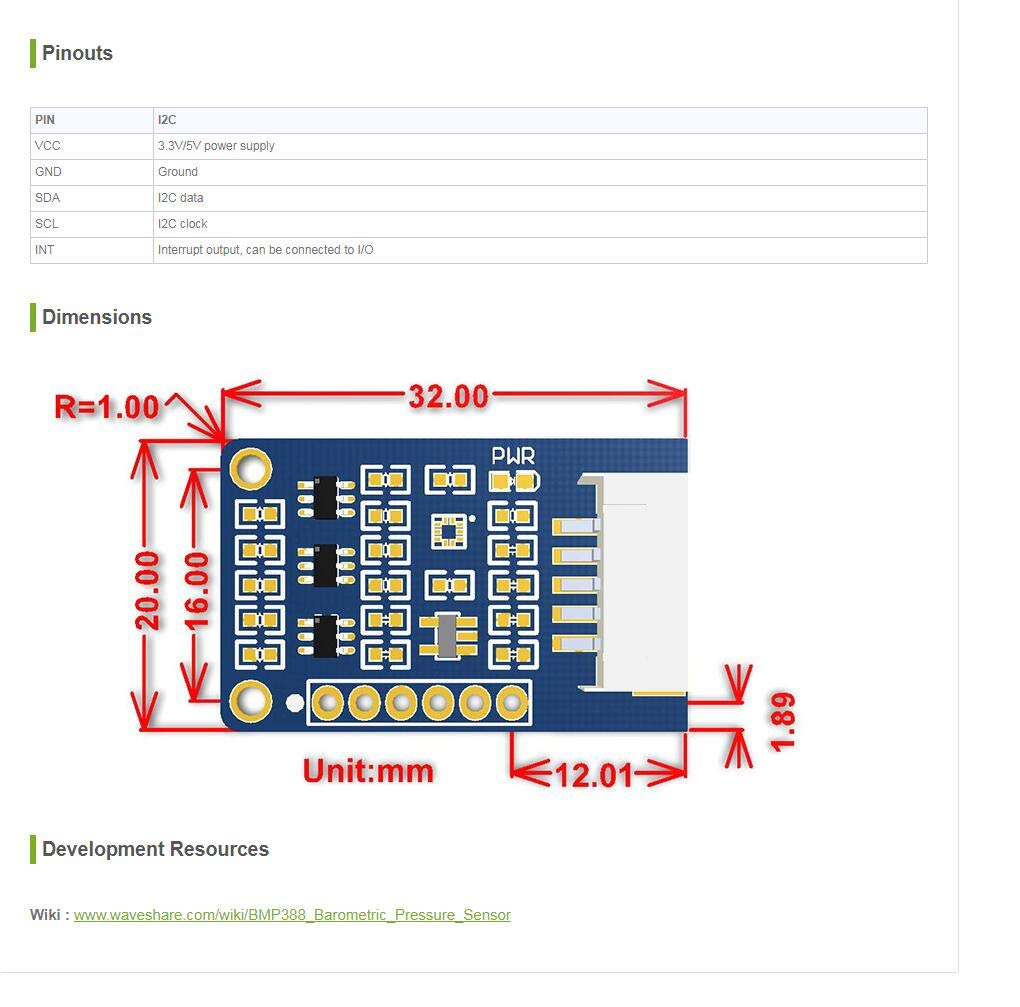

Dimension: 32mm × 20mm
Mounting hole size: 2.0mm

Card Description	Dedicated
Brand	waveshare
Series	BMP388
Item model number	BMP388 Barometric Pressure Sensor
Item Weight	0.64 ounces
Package Dimensions	3.2 x 2.8 x 1.1 inches
Color	BMP388 Barometric Pressure Sensor

BMP388 High Precision Barometric Pressure Sensor, Compatible with Raspberry Pi 5/4B/3B/Zero/Zero W/Zero 2W/Pico/Pico W/Pico WH, Altitude/Barometric Pressure/Temperature Measuring, I2C/SPI Interface
